Onyx Onyx S45 Standard High-Torque Metal Gear 2BB Servo

Features
All mounting hardware included.
1-year limited warranty
Servos feature a universal connector compatible with all major radio brands.
Overview
Expertly engineered Onyx servos deliver the speed, torque and precision needed for optimal results in a wide variety of applications. Onyx servo options allow you to match your needs to the letter. Select from analog or digital styles, plastic or metal gears, and options with ball bearings and coreless motors. Onyx servos are solid buys in long-lasting performance and a pleasant surprise in value. Onyx servos are a simple way to enjoy savings without sacrificing performance. All Onyx servos are protected by a 1-year limited warranty. All also include a universal connector and mounting hardware.

What’s in the Box?

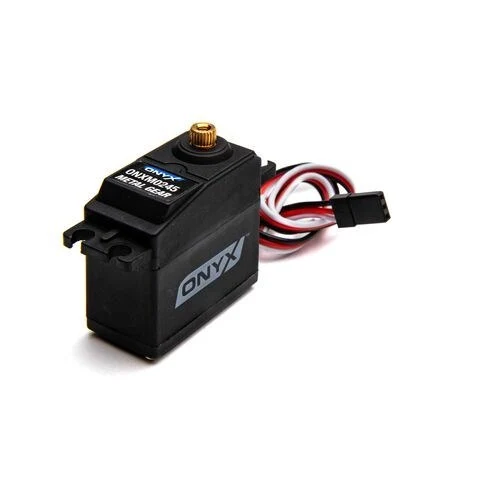

Onyx S45 Standard High Torque Metal Gear Servo
0.82 in (20.8mm) diameter Round Horn
1.5″ (38mm) 4-Point Horn
1.2 in (31.9mm) diameter 6-Point Horn
(4) each Grommets, Eyelets and Mounting Screws
(1) Servo Horn Screw
Specifications
Back to Top ^

Bearing
Dual
Bushing Or Bearing
Bearing
Gear Material
Metal
Height
1.5 in (38mm)
Length
1.6 in (40 mm)
Programmable
No
Servo Operating Voltage
4.8 – 6.0V
Servo Size Category
Standard
Speed
0.21 sec/60 deg @ 4.8V, 0.17 sec/60 deg @ 6.0V
Spline Count
25 Teeth
Torque
143 oz-in (10.3 kg-cm) @ 4.8V; 151 oz-in (10.9 kg-cm) @ 6.0V
Weight
1.8 oz (51 g)
Width
0.79 in (20 mm)
