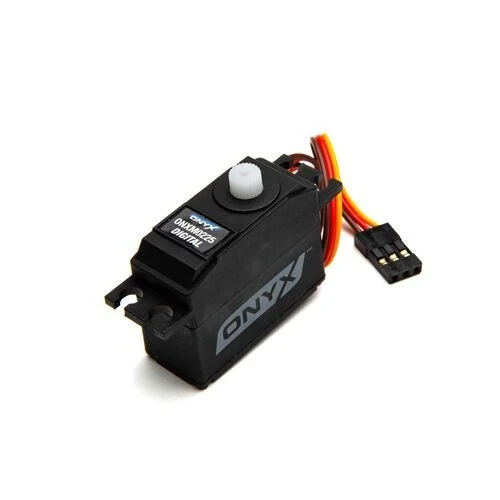

Onyx Onyx S25 Mini Digital High-Speed 2BB Servo

Features
All mounting hardware included.
1-year limited warranty
Servos feature a universal connector compatible with all major radio brands.
Overview
Expertly engineered Onyx servos deliver the speed, torque and precision needed for optimal results in a wide variety of applications. Onyx servo options allow you to match your needs to the letter. Select from analog or digital styles, plastic or metal gears, and options with ball bearings and coreless motors. Onyx servos are solid buys in long-lasting performance and a pleasant surprise in value. Onyx servos are a simple way to enjoy savings without sacrificing performance. All Onyx servos are protected by a 1-year limited warranty. All also include a universal connector and mounting hardware.

What’s in the Box?
Onyx S25 Mini Digital High Speed Servo
0.75 in (19mm) Single Arm Horn
0.83 in (21mm) Round Horn
1.5 in (39mm) Double Arm Horn
1.2 in (31.5mm) diameter 6-Point Horn
1.5 in (37.8mm) diameter 4-Point Horn
Four each Grommets, Eyelets and Mounting Screws
2.5mm Servo Horn Screw

Specifications

Bushing Or Bearing
Bushing
Gear Material
Plastic
Height
1.14 in (29mm)
Length
1.4 in (36 mm)
Programmable
No
Servo Operating Voltage
4.8 – 6.0V
Servo Size Category
Mini and Micro
Speed
0.15 sec/60 deg @ 4.8V, 0.12 sec/60 deg @ 6.0V
Spline Count
25 Teeth
Torque
84 oz-in (6.1 kg-cm) @ 4.8V; 91 oz-in (6.6 kg-cm) @ 6.0V
Weight
0.88 oz (25 g)
Width
0.59 in (15 mm)
