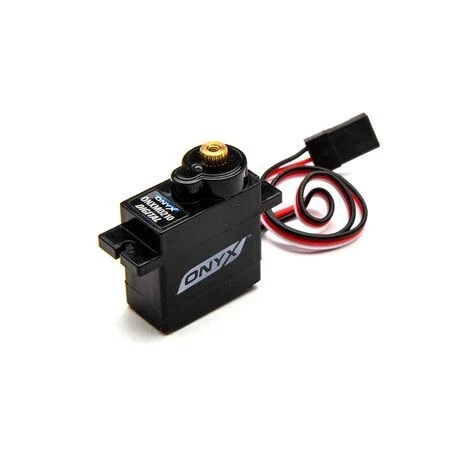

Onyx Onyx S10 Micro Digital High-Torque MG BB Servo

Features
All mounting hardware included.
1-year limited warranty
Servos feature a universal connector compatible with all major radio brands.
Overview
Expertly engineered Onyx servos deliver the speed, torque and precision needed for optimal results in a wide variety of applications. Onyx servo options allow you to match your needs to the letter. Select from analog or digital styles, plastic or metal gears, and options with ball bearings and coreless motors. Onyx servos are solid buys in long-lasting performance and a pleasant surprise in value. Onyx servos are a simple way to enjoy savings without sacrificing performance. All Onyx servos are protected by a 1-year limited warranty. All also include a universal connector and mounting hardware.

Specifications

Bearing
Single
Bushing Or Bearing
Bearing
Gear Type
Metal
Maximum Servo Speed
0.100-0.149 sec
Maximum Servo Torque
20-39 oz-in
Product Height
1.06 in (27mm)
Product Length
0.90 in (23 mm)
Product Weight
0.48 oz (15 g)
Product Width
0.47 in (12 mm)
Programmable
No
Search Keywords
TSX10, tactic
Servo Operating Voltage
4.8 – 6.0V
Servo Size Category
Mini and Micro
Speed
0.12 sec/60 deg @ 4.8V, 0.10 sec/60 deg @ 6.0V
Torque
17 oz-in (1.2 kg-cm) @ 4.8V; 23 oz-in (1.7 kg-cm) @ 6.0V
