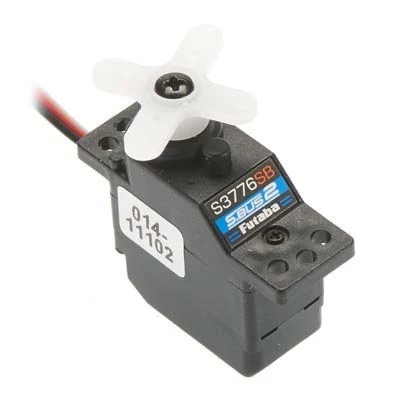

This is the Futaba S3776SB Micro Digital SBus2 Servo.
FEATURES: For small electric powered aircraft, not for use with glow or
gasoline powered aircraft
Programmable and compatible with S.Bus and S.Bus2 systems
Metal output gear
INCLUDES: S3776SB Micro Digital SBus2 Servo
0.79″ (20mm) diameter 4-Point Horn
1.7″ (42.5mm) diameter 4-Point Horn
Four 2×11 Mounting Screws
SPECS: Rated Voltage: DC 4.8V – 5.2V
Operating Voltage: DC4.0 – 6.0V
Dimensions: 0.86 x 0.43 x 0.86″ (21.8 x 11.0 x 21.9mm)
Weight: 0.35oz (10.0g)
4.8V 6.0V
Speed, sec/60°: 0.13 0.11
Torque: 27.8oz/in (2.0kg/cm) 33.3oz/in (2.4kg/cm)
