Futaba Futaba S3107 Micro 9g Servo .12sec/17oz @ 4.8V

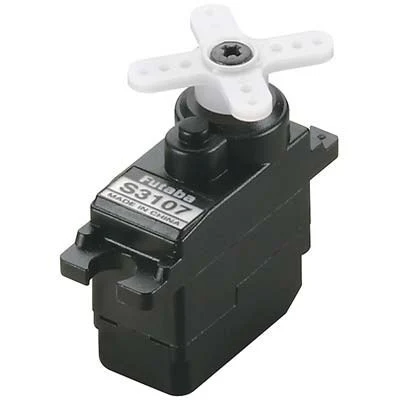

This is the S3107 Micro Servo from Futaba.
This servo is used for R/C Park Flyer airplanes.

This servo can produce high-current draw from your batteries.
If using NiMH or LiPo batteries make sure they are capable
of delivering sufficient amps.

FEATURES: Delivers excellent torque and speed for its small size light weight
3-pole motor
Can be used for elevators ailerons and rudders
One year warranty
Nylon gears

INCLUDES: One S3107 Micro Servo with Futaba J male connector and mounting
hardware

SPECS:    Speed:  .12 sec/60? @ 4.8V
Torque: 17 oz-in (1.2 kg-cm) @ 4.8V
Dimensions: 0.9 x 0.4 x 0.8″ (22 x 11 x 20mm)
Weight: 0.32 ounce (9.0 grams)
Connector: Male “J” type with approx. 5″ wire
Output Shaft Diameter: 5mm

COMMENTS: This servo cannot be used with gasoline engines or large/middle
scale gliders or other models that require torque. Use of 6.0V not
recommended as this will shorten servo life.
For replacement servo horn use FUTM2005
