Futaba Futaba S3004 Standard Ball Bearing Servo .19sec/56.9oz @

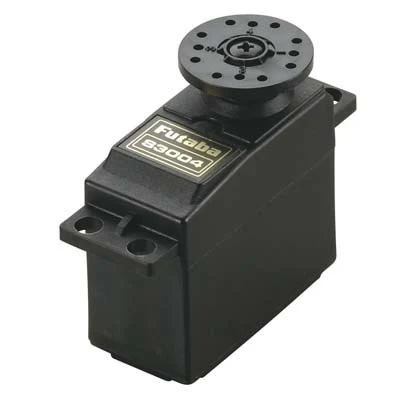

This is the Futaba S3004 Light Weight Ball Bearing Servo.
This basic servo is used in cars boats or where standard servos are used.
Note: This servo is not designed for use with glow-powered helicopters.
This is a replacement for the following servos.(S15)

This servo can produce high-current draw from your batteries.
If using NiMH or LiPo batteries make sure they are capable
of delivering sufficient amps.

FEATURES: Single ball bearing on output shaft
Precise tight fit throughout the geartrain
Being standard size and lightweight it fits many applications.
Three pole motor
Nylon gears
One year warranty

INCLUDES: One S3004 standard servo with preinstalled round servo horn(FSH6W)
Four brass eyelets
Four Black one-piece rectangular rubber grommets (FUTM2348)
Four servo mounting screws
Three servo horns (1 lg. round 1 lg.”X” and 1 sm. “x”)

SPECS:    Speed:   0.23 sec/60? @ 4.8V
0.19 sec/60? @ 6.0V
Torque:  44 oz-in (3.2 kg-cm) at 4.8V
57 oz-in (4.1 kg-cm) at 6.0V
Dimensions: 1.6 x 0.8 x 1.4″ (40 x 20 x 36mm)
Weight: 1.3 ounce (37 grams)
Connector: “J” type with approx. 5″ wire
