Futaba Futaba 3PRKA 3-Channel 2.4GHz FHSS Radio System W/R203GF

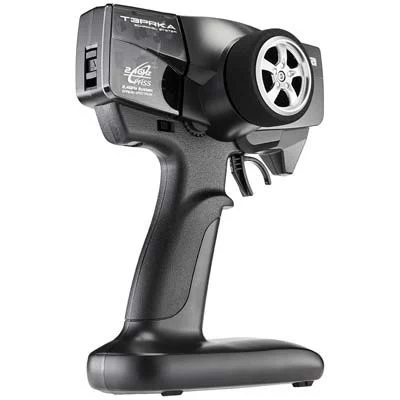

This is the 3-Channel Futaba 3PRKA 2.4GHz FHSS Radio System
with the R203GF Receiver.

FEATURES: Ideal upgrade for radios found in RTR vehicles
Throttle and steering trim and reverse
Steering dual rate dial
Throttle end point adjustment
Channel three switch
Throttle fail safe
70/30 throttle mode

INCLUDES: Futaba 3PRKA 2.4GHz FHSS Transmitter, R203GF Receiver, Instruction
Manual

REQUIRES: Servos of modeler’s choice
Four AA batteries for transmitter

SPECS:

Receiver;
Dimensions: 1.54 x 1.02 x 0.39″ (39 x 26 x 10mm)
Weight: 0.28oz (8g)
Operating Voltage: 4.8 – 7.4V (shared with servo)
Battery Fail Safe Voltage: 3.8V*
Current Drain: 30mA at no signal
*Battery fail safe voltage is set for 4-cell NiCd/NiMH battery
Battery F/S does not work properly when other type of battery is used

COMMENTS: 2.4GHz FHSS is not compatible with FASST systems, and the R203GF
receiver is compatible only with electronics created specifically
for 2.4GHz FHSS systems.

BOX DIMENSIONS: 8.00″ W. X 4.63″ H. X 12.13″ L.
BOX WEIGHT: 1.31 LBS.
