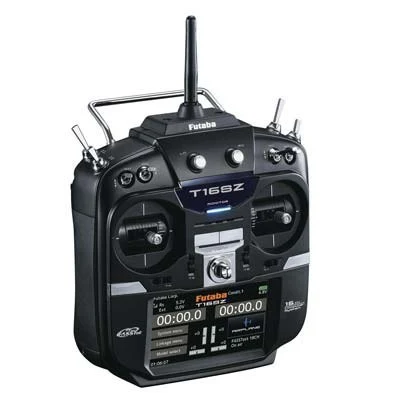

Futaba Futaba 16SZ 2.4GHz FASST Airplane Spec Radio System W/ R7

This is the Futaba 16SZA 2.4GHz Air FASSTest 16 Channel Computer Radio System
with the R7008SB Receiver.
This is the airplane version which will default to airplane settings
when powered up.
**Transmitter and Receiver only, servos not included.**

10/17 Updates Include the Following;
Telemetry Display
Timer Alarm
Model Select (FX-32)
Data Converter
Butterfly Elevator
Butterfly Mixing
Butterfly Differential
Failsafe (FASST-7CH)

For all updates check http://www.futabarc.com/software-updates.html

FEATURES: Compatible with FASSTest, FASST, T-FHSS and S-FHSS protocols
Full telemetry compatible
4.3″ LCD touch screen
10 programmable mixes
S.Bus servo programming editor
S.Bus trainer port
3-axis gyro support
30-model memory with 15 character naming
3-axis gyro support
Swash and throttle mixing
V-tail mixing
Adjustable servo speed
AFR/DR
AFR curve mode (3)
AFR curve point (17 points)
Idle down
Logic switch
8 flight conditions
Throttle cut
Voice message/audio earphone jack
Micro memory card slot
Software updateable
Up/down/integral timer
Free online software upgrades
Lap timer memory
Stick calibration
180° antenna rotation and 90° angle adjustment
Multi language (9 languages)
EPA

Airplane and Glider Features;
13 wing types
3 tail types
2 rudder types
Flap setting
Aileron differential
Aileron to camber flap mix
Aileron to brake flap mix
Aileron to rudder mix
Airbrake to elevator mix
Rudder to aileron mix
Camber mix
Elevator to camber mix
V-tail
Ailevator
Winglet
Motor mix
Airplane Specific Features;
Rudder to elevator mix
Snap roll
Airbrake mix
Multi engine
Glider Specific Features;
Butterfly mixing
Butterfly to elevator
Trim mix 1
Trim mix 2
Helicopter Features;
8 swash types
Pitch/throttle curve
Pitch/throttle curve mode (3)
17 point pitch/throttle curve
Acceleration
Throttle hold
Swash mixing
Throttle mixing
Pitch to needle mixing
Pitch to rudder mixing
Gyro sensor (3)
Governor
Condition hold
Hovering pitch
Hovering throttle
Swash AFR
Swash setting
Swash ring
Throttle limiter
Multicopter Features;
Gyro
Telemetry Features;
Receiver battery
Temperature
RPM (magnetic and optic)
Altitude
GPS
Voltage
Current
Servo
Voice (English, German, Japanese, French)
Data logging

INCLUDES: Futaba 16SZA Transmitter with 6.0V NiMH rechargeable battery
R7008SB Receiver, FUTL7675

REQUIRES: Servos of modeler’s choice (analog servos cannot be used in
FASSTest12CH mode)

SPECS: Transmitter;
Transmitting Frequency: 2.4GHz band
System: FASSTest18CH, FASSTest12CH, FASST MULT, FASST 7CH, T-FHSS,
S-FHSS, switchable
Power supply: 6.0V HT5F1800B NiMH battery
RF power output: 100mW EIRP

Receiver;
Receiving Frequency: 2.4GHz FASSTest system
Power Requirement: 3.7 – 7.4V (voltage range 3.5 – 8.4V)
Current drain: 75mA
External voltage Port: 0 – 70V DC
Size: 0.98 x 1.9 x 0.56″ (24.9 x 47.3 x 14.3mm)
Weight: 0.38oz (10.9g)
Antenna Length: 5-3/4″ (146mm)
