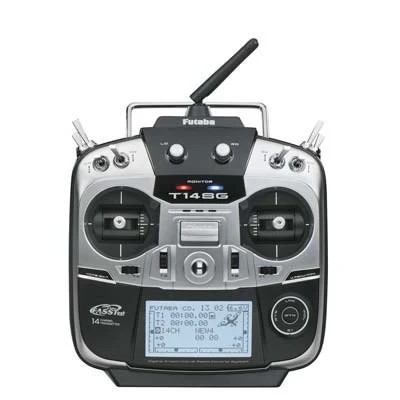

Futaba Futaba 14SGH 2.4GHz FASST Heli Spec Radio System W/ R7008

This is the Futaba 14SG 14 Channel 2.4GHz Computer Radio System on Mode 2
with the R7008SB Receiver
**Does Not Include Servos**

This is the Mode 2 version-the left stick controls
throttle and rudder and the right stick controls elevator and ailerons

This is the helicopter version which will default to heli settings
when powered up and has a spring loaded throttle stick.

**Additional Technical Info Will Be Added When It Becomes Available.**

FEATURES: 2.4GHz FASSTest technology is also compatible with Futaba FASST and
S-FHSS protocols, allowing this system to be used with any 2.4GHz
air receiver Futaba produces
Transmits and receives telemetry data with Futaba telemetry sensors
(not included, sold separately) to monitor flight data, receive
alerts and more
30 model memory with 10 character model naming and 10 character user
naming
Left and right assignable slider switches
Two assignable rotary knobs
Six assignable three-position switches
One assignable momentary two-position switch
One assignable two-position switch
S.Bus programmability
Programming port and earphone jack
Airplane Features;
7 different wing types, 3 different tail types, 2 different rudder
types
Flap setting menu
Differential ailerons
Aileron to camber flap mixing, aileron to rudder mixing
Rudder to aileron mixing and rudder to elevator mixing
Camber mixing, elevator to camber mixing, camber flap to elevator
mixing
Snap roll, V-tail and airbrake mixing
Ailevator
Winglet
Motor mixing
Fuel mixture mixing (single and twin)
Gyro mixing
Throttle curve (5-point), Pitch curve (5-point)
Idle down
Helicopter Features;
6 swash plate types
Pitch/throttle curves (5-point)
Throttle hold
Swash mix
Throttle mix
Pitch to rudder mixing
Fuel mixture
Gyro (flybarless support)
Governor (700-3500 rpm)
Hover pitch and throttle
High/low pitch
Swash AFR
Swash setting (mixing rate, linkage and speed compensation), swash
ring (electronic)
Throttle cut
Glider Features:
11 different wing types, 3 different tail types, 2 different rudder
types
Flap setting menu
Differential Ailerons
Aileron to camber flap mixing
Aileron to brake flap mixing
Aileron to rudder and rudder to aileron mixing
Rudder to elevator mixing
Camber mixing
Elevator to camber mixing
Camber flap to elevator mixing
Butterfly mixing, butterfly to elevator mixing

INCLUDES: This is the Futaba 14SG 14 Channel 2.4GHz Computer Radio System on
Mode 2 with R7008SB Receiver

REQUIRES: Servos of modeler’s choice

SPECS: Transmitter;

R7008SB Receiver (FUTL7675);
Receiving Frequency: 2.4GHz FASSTest system
Power Requirement: 3.7 – 7.4V (voltage range 3.5 – 8.4V)
Current drain: 75mA
Extra Voltage Port: 0 – 70V DC
Size: 0.98 x 1.9 x 0.56″ (24.9 x 47.3 x 14.3mm)
Weight: 0.38oz (10.9g)
